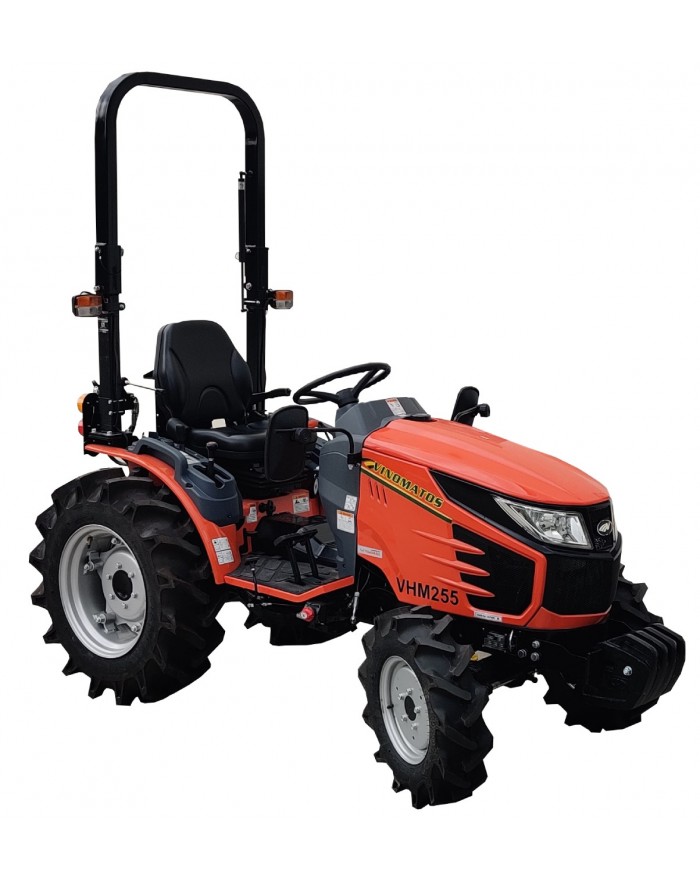

Tractor Vinomatos - VHM255
New product
The VHM255 agricultural tractor with Japanese technology represents modernity and functionality, standing out for its renowned Yanmar engine that makes the difference. With excellent maneuverability and high ergonomics, it has 25 hp.
Diesel Engine
- Yanmar 3TNV76-UD (Phase V)
- Displacement 1,116 cc with three cylinders
- Maximum power 18.9 kW (25.3 HP)
- Water cooling system
Fuel Tank Capacity: 22 liters
Electrical system
- 12V 50AH battery
- Starter System Starter with preheating
- Starting Capacity 1.2 kW
- Alternator 12V 40A
clutch
- Main Single-Disk, Dry, Mechanical
Transmission
- Mechanics
- 6 speeds forward / 2 speeds backward
- Inverter: No
Brakes: Oil Disc
Semi-independent Power Take-Off (TDF)
- EH: 540
Hydraulic system
- Direction: Hydrostatic
- Pump capacity: 26.3 lpm
- Main relief pressure: 15.2 Mpa
- Steering relief pressure: 10.8 Mpa
Elevation System
- 3-point hitch - Cat. 1(N)
- Lifting capacity: 600 kg
