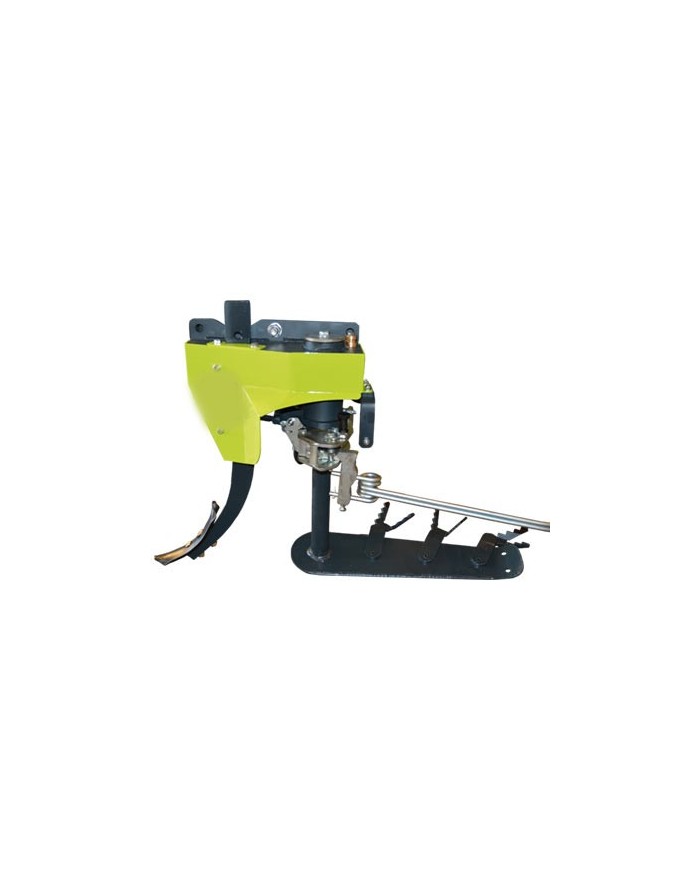

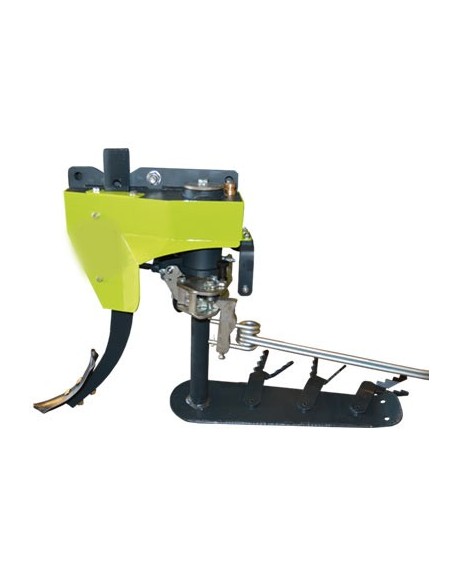

Simple Hydraulic Intercepts
New product
Technical characteristics:
- Intercepts for assembly in growers or semichisels;
- Working depth between 5-10 cm;
- Working speed between 5-10 km / h;
- Great diversity of models and accessories satisfy all types of users;
Standard Equipment:
- Probe;
- Anti-slip knife of L = 370, L = 500 o L = 620 mm (depending on model);
- 2 or 3 wings depends on the knife to remove;
- Simple special effect monkey;
- Pressure limiting valve;
- Hydraulic tubes to the tractor;
- Protections to prevent accidents according to the EC Rules;
Important note: The two hydraulic tubes must always be connected to one pressure and the other to the return without pressure (to the tank)
Available Intercept Models
| MODEL |
WORKING WIDTH (MM) |
SIDE |
| ISU370D | 370 | RIGHT |
| ISU370I | 370 | LEFT |
| ISU500D | 500 | RIGHT |
| ISU500I | 500 | LEFT |
| ISU620D | 620 | RIGHT |
| ISU620D | 620 | LEFT |
