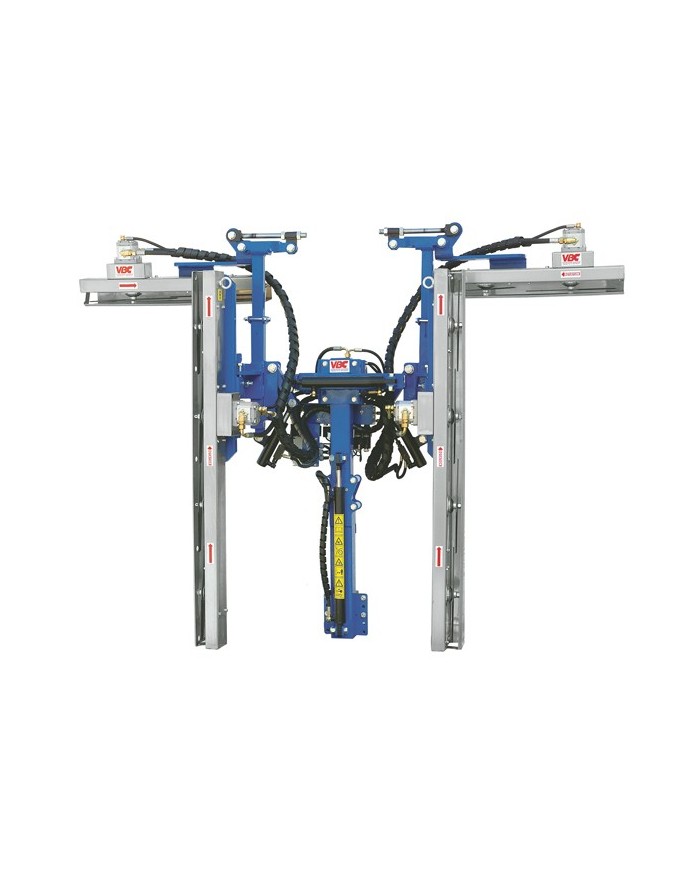

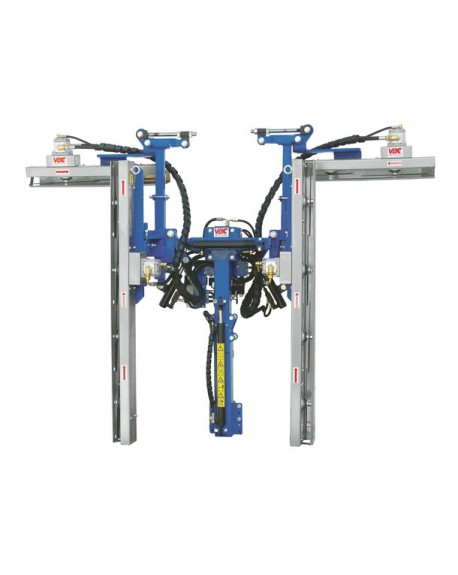

Dispatcher C4 - VBC
New product
Dispatcher C4 that guarantees versatility and adaptability to various types of crops such as vineyards and various fruit trees. Equipped with quick coupling system, ideal for your tractor!
N. 2 vertical bars (right – left) with 4 blades each (working cut of 1600 mm)
N. 2 upper bar (right – left) with 2 blades each (working cut of 800 mm)
Hydraulic tilt adjustment with 2 pistons
Hydraulic height adjustment with 1 piston
Upper bars mechanical setting
Side (shifting) hydraulic adjustment with 2 pistons right + left
Antishock on vertical bars
Special tempered 420 mm steel blades
5-controls hydraulic distributors with blades speed regulator
Powered by 4 hydraulic engines (it requires150 bar pressure and 30 litres/min oil)
Pipes equipped
Stainless steel cutting part
Machine weight 320 kg
N. 2 upper bar (right – left) with 2 blades each (working cut of 800 mm)
Hydraulic tilt adjustment with 2 pistons
Hydraulic height adjustment with 1 piston
Upper bars mechanical setting
Side (shifting) hydraulic adjustment with 2 pistons right + left
Antishock on vertical bars
Special tempered 420 mm steel blades
5-controls hydraulic distributors with blades speed regulator
Powered by 4 hydraulic engines (it requires150 bar pressure and 30 litres/min oil)
Pipes equipped
Stainless steel cutting part
Machine weight 320 kg
